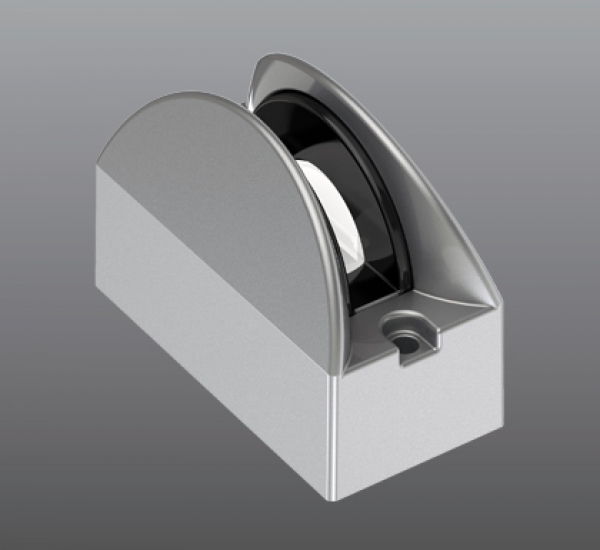

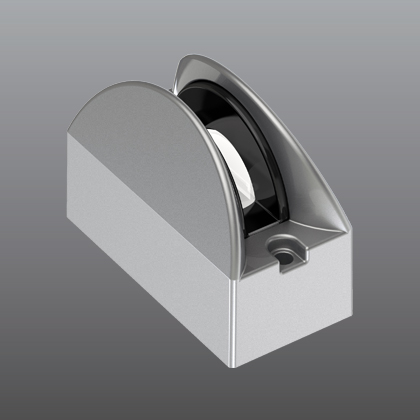

20.3001

Basic parameter:

Material:ADC12 corrosion-resistant die-cast aluminum housing;
            Anti-aging waterproof silicone gasket;
            Anti-UV PC diffuser;
            304 stainless steel external fasten screws
Finishing:Double layers of DUPONT UV-resistant polyester powder coating
Installation:Ambient temperature: -30℃~ +50℃ ;
                Single color: 1x0.4m length 2/3-cores Ø7.0mm power
                supply cable;
                DMX512 compatible: 1x1m length 5-cores Ø7.6mm data
                cables.
                Nickel plated brass waterproof cable gland
Packaging:Net weight: 0.35kg
                Outer carton: 455x190x200mm(48pcs/ctn)

Product model maximum power Beam angle Color temperature / color control mode Luminous flux Figure No
20.3001.A1V12 4W 6°x150° 2200K-5700K ON/OFF 144lm /
20.3001.A1CV12 4W 6°x150° 2200K-5700K DMX512 144lm /
20.3001.A1V220 6W 6°x150° 2200K-5700K ON/OFF 194lm /
