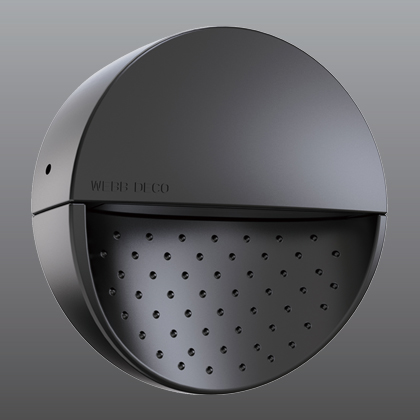

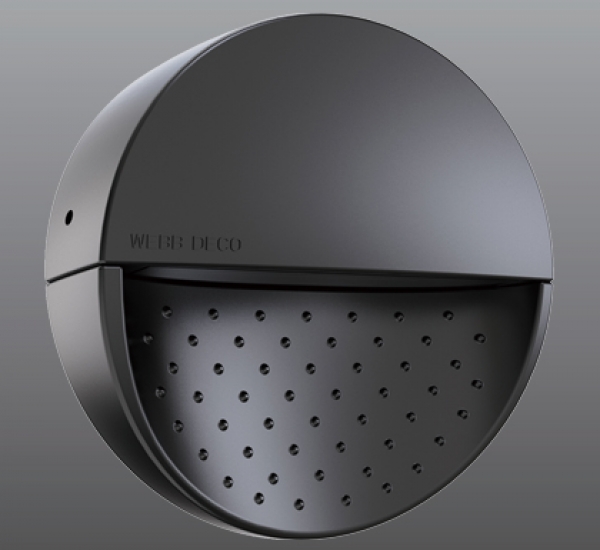

20.9022

Basic parameter:

Material:ADC12 corrosion-resistant die-cast aluminum housing ;
            Anti-aging waterproof silicone gasket;
            3mm clear safety glass;
            304 external fasten screws;
Finishing:Double layers of UV-resistant polyester powder coating
Installation:Ambient temperature: -30℃~ +50℃ ;
                Single color: 1x 0.2m length 2/3-cores Ø7.0mm power
                supply cable;
                DMX512 compatible: 1x 0.2m length 4/6-cores Ø6.0mm/
                Ø7.5mm cable.
                Nickel plated brass waterproof cable gland
Packaging: Net weight: 1.03kg
                Outer carton: 420x420x250mm (16pcs/ctn)

Product model maximum power Beam angle Color temperature / color control mode Luminous flux Figure No
20.9022.D18V220 4W Asymmetric 60X80° 2200K-5700K ON/OFF 131lm /
