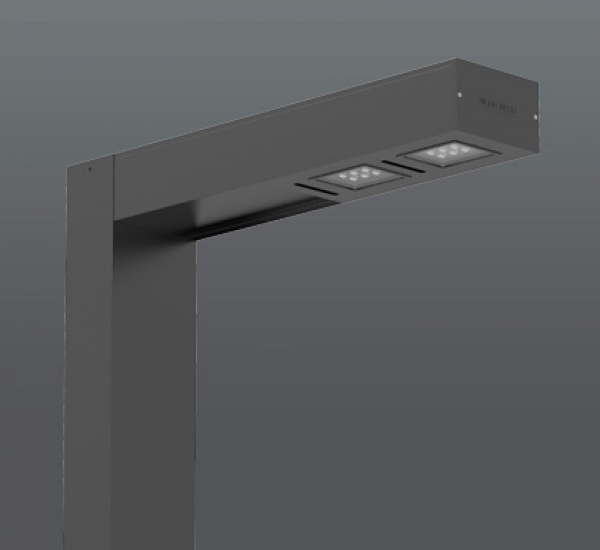

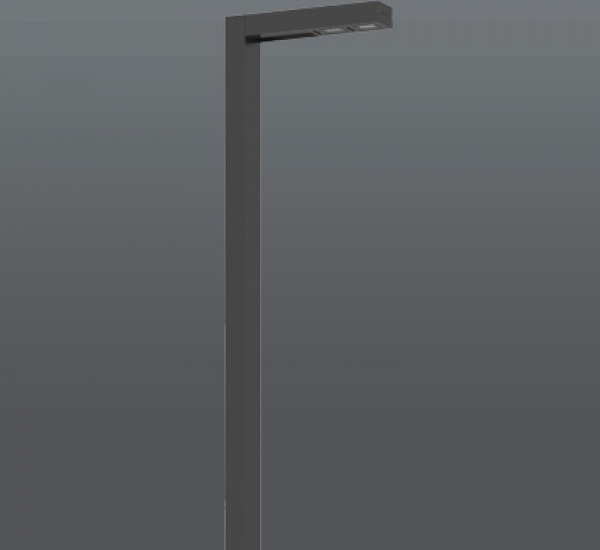

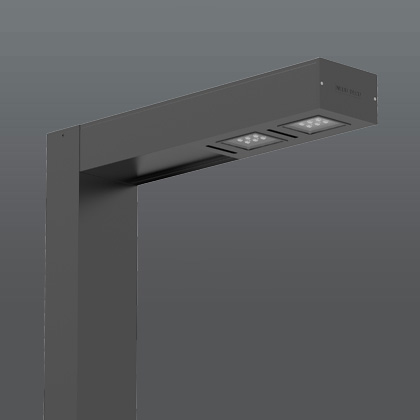

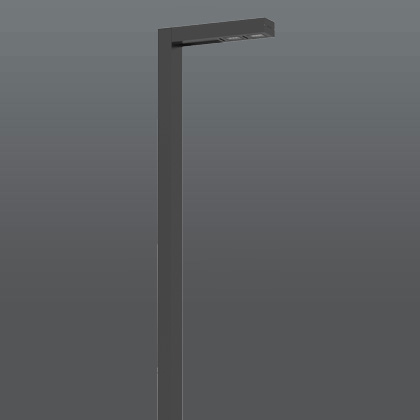

50.7012

Basic parameter:

- Material: Extruded aluminum lamp housing

                 Anti-aging waterproof silicone gasket

                 304 stainless steel external fasten screws

                 3mm clear safety glass


- Finishing: Double layers of DUPONT UV-resistant polyester powder coating


- Installation: Ambient temperature: -30℃~+45℃;

                   Non-dimmable:1x 1m length 3-cores Ø7.5mm power supply cable;

                  Dimmable: 1x 1m length  3-cores Ø7.5mm power supply cable &

                   1x 2-cores Ø6.9mm data cable

                   Nickled plated brass waterproof cable gland

Product model maximum power Beam angle Color temperature / color control mode Luminous flux Figure No
50.7012.D48CV220L1200 50W 60x140° 2200K-5700K 0-10V/PWM 4600Lm /
50.7012.D48V220L1200 50W 60x140° 2200K-5700K ON/OFF 4600Lm /
50.7012.D48CV220L800 50W 60x140° 2200K-5700K 0-10V/PWM 4600Lm /
50.7012.D48V220L800 50W 60x140° 2200K-5700K ON/OFF 4600Lm /
