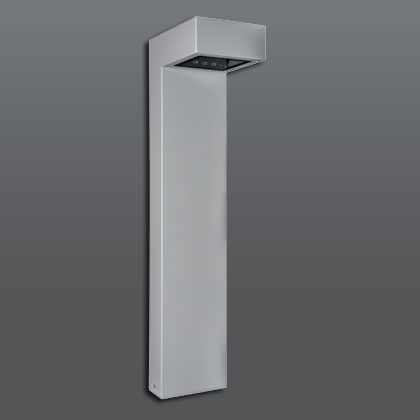

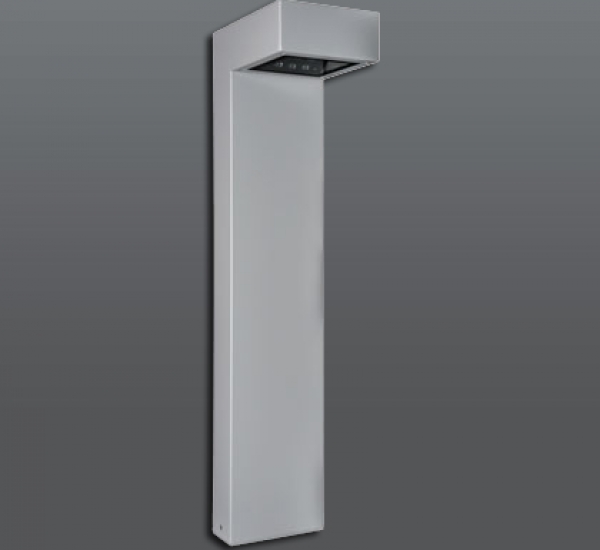

50.7010

Basic parameter:

- Material: ADC12 corrosion-resistant aluminum housing and mounting base

                  Extruded aluminum lamp pole

                 304 stainless steel external fasten screws

                 3mm clear safety glass


- Finishing: Double layers of DUPONT UV-resistant polyester powder coating


- Installation:Ambient temperature:-30℃~+45℃;

                Single color: 1x 3-cores Ø7.5mm power supply cable,

               cable length is 0.3m longer than the pole

               Nickled plated brass waterproof cable gland

Product model maximum power Beam angle Color temperature / color control mode Luminous flux Figure No
50.7010.A16V220H4000 36W Asymmetric 70x135°/Asymmetric 60 2200K-5700K ON/OFF 2740Lm /
50.7010.A12V220H3000 27W Asymmetric 70x135°/Asymmetric 60 2200K-5700K ON/OFF 2100Lm /
50.7010.A4V220H800 10.5W Asymmetric 70x135°/Asymmetric 60 2200K-5700K ON/OFF 700Lm /
