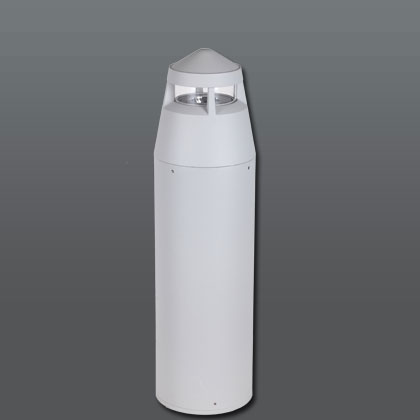

50.7008

Basic parameter:

- Material: ADC12 corrosion-resistant aluminum housing and mounting base

                 Extruded aluminum lamp pole

                 304 stainless steel external fasten screws

                 4mm transparent anti-UV PMMA diffuser


- Finishing: Double layers of DUPONT UV-resistant polyester powder coating


- Installation: Ambient temperature:-30℃~+45℃;

                    Single color: 1x 3-cores Ø7.5mm power supply cable,

                    cable length is 0.3m longer than the pole

                    Nickled plated brass waterproof cable gland

Product model maximum power Beam angle Color temperature / color control mode Luminous flux Figure No
50.7008A8V220H800 20W 4x Asymmetric 70x360° R+G ON/OFF 300Lm /
50.7008D.B1V220H800 23W 2x Asymmetric 70x360° 2700K-5700K ON/OFF 600Lm /
50.7008S.B1V220H800 23W 1x Asymmetric 70x360° 2700K-5700K ON/OFF 300Lm /
50.7008.B1V220H800 23W 4x Asymmetric 70x360° 2700K-5700K ON/OFF 1200Lm /
