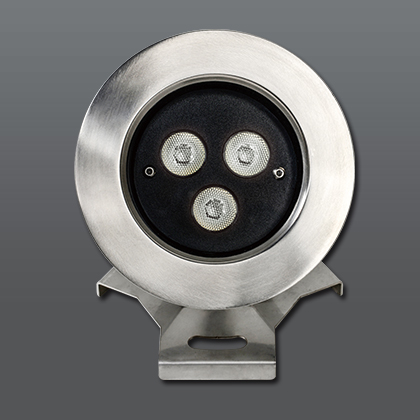

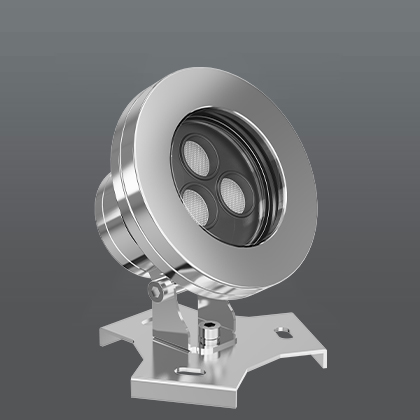

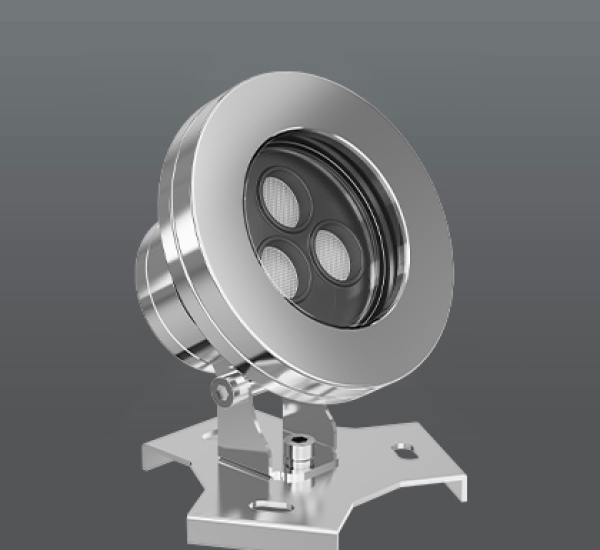

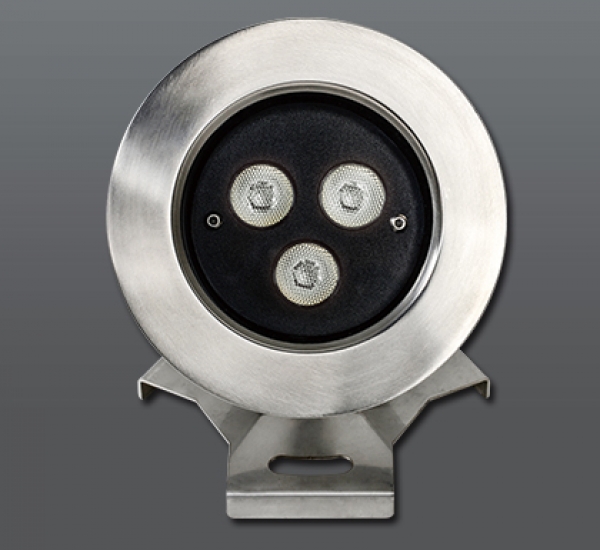

80.8031

Basic parameter:

- Material: 316L stainless steel housing

                 316 stainless steel external fasten screws;

                 Anti-aging waterproof silicone gasket;

                 5mm clear safety glass


- Finishing: Stainless steel


- Installation: Ambient temperature: -30℃~+45℃;

                     Tiltable: 0~90°

                     Rotation angle: 0~350°

                     Single color: 1x3m length 2coresф7.5mm power supply cable

                     DMX512 controllable: 1x3m length 2coresф7.5mm power supply cable

                     2x3m length 4coresф6.5mm signal supply cable

                     Nickled plated brass waterproof cable gland

Product model maximum power Beam angle Color temperature / color control mode Luminous flux Figure No
80.8031.A3V12 8W 10°/15°/40°/60°/20x40° 2200K-5700K ON/OFF 680lm /
80.8031.A3CV12 6W 10°/15°/40°/60°/20x40° 2200K-5700K DMX512 640lm /
80.8031.E3SV12 8W 10°/16°/25°/40° RGBW DMX512 280lm /
