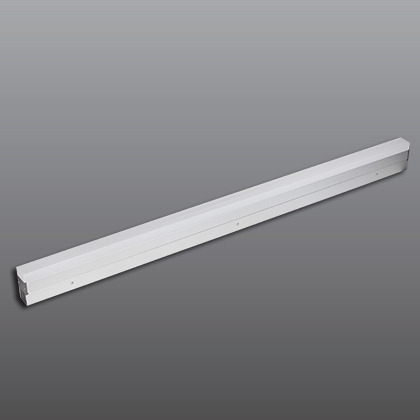

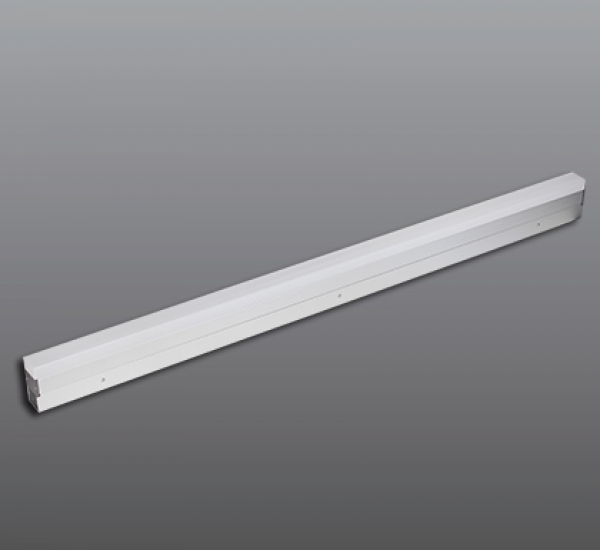

70.6019

Basic parameter:

- Material: Corrosion-resistant aluminum housing & mounting box

                 UV stabilized PMMA diffuser;

                 304 stainless steel external fasten screws


- Finishing: Anodized aluminum finishing


- Installation: Ambient temperature: -30℃~+45℃;

                     Single Color: 2x 0.2m length 2-cores Ø7.0mm cables with waterproof connector;

                     DMX512 controllable: 2x 0.2m length 6-cores Ø7.5mm cables with waterproof connector.

                     Nickled plated brass waterproof cable gland

Product model maximum power Beam angle Color temperature / color control mode Luminous flux Figure No
70.6019.D72V24L1200 15W 160° 2200K-5700K ON/OFF 1341lm /
70.6019.D96CV24L1200 15W 160° 2200K-5700K DMX512,1/4/8 pixel 1341lm /
70.6019.E96HV24L1200 15W 160° 1800K~6000K DMX512,1/4/8 pixel 1050lm /
70.6019.E96SV24L1200 15W 160° RGBW DMX512,1/4/8 pixel 651lm /
