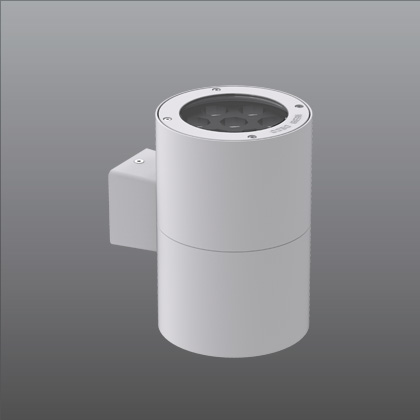

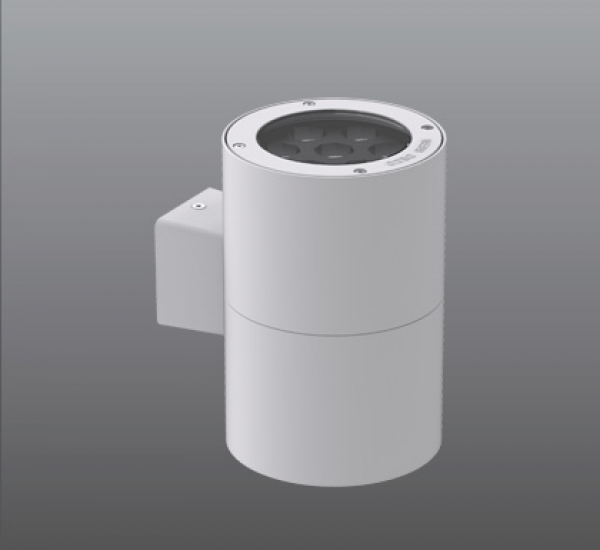

20.8503D

Basic parameter:

- Material: ADC12 corrosion-resistant die-cast aluminum housing

                 3mm clear safety glass

                 Anti-aging waterproof silicone gasket

                 304 stainless steel external fasten screws


- Finishing: Double layers of DUPONT UV-resistant polyester powder coating


- Installation: Ambient temperature: -30℃~+45℃:

                     Single color: 1x 0.5m length 2-cores Ø7.0mm power supply cables

                     Nickled plated brass waterproof cable gland

Product model maximum power Beam angle Color temperature / color control mode Luminous flux Figure No
20.8503D.B2V220 24W+24W 12°/25°/40° 2700K-5700K ON/OFF 4520Lm /
20.8503D.A24V220 26W+26W 10°/25°/40°/60° 2200K-5700K ON/OFF 4700Lm /
